What Is The Difference Between On Grid Off Grid And Hybrid Solar System

The main differences between on-grid, off-grid, and hybrid solar systems are how they store energy and whether they connect to the utility grid:

  • On-grid

These systems connect to the utility grid and don't require storage. They are easy to install and maintain, and can help lower your carbon footprint. However, they won't work during power outages.

  • Off-grid

These systems are completely independent of the utility grid and use large storage batteries to store excess electricity. They are a good choice for remote areas or places with unreliable grid infrastructure. Off-grid systems are immune to grid failures, but they can be bulky and have a small shelf life.

  • Hybrid

These systems combine features of both on-grid and off-grid systems, using a storage size that depends on load requirements. They can provide a continuous power supply, but they can be expensive to install and have high battery costs. Hybrid systems can also be less environmentally friendly than off-grid systems because they use the grid as a backup.



On-grid and off-grid are the two most common types of solar systems. On-grid means that all the components of your system must be connected to the grid. Off-grid means that you have your own power generation system, but it may or may not be connected to the grid. Each has its benefits, but if you want to get into solar it's important that you understand what each system entails so that you can choose which one is right for your home or business.



What is a Solar System?



A solar system is an arrangement that uses solar energy to create electricity. A typical solar system includes of-

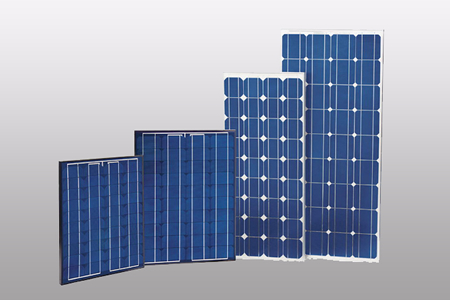

  1. solar panels - which collect sunlight
  2. solar inverter - which converts DC to AC
  3. a mounting frame - which holds the panels in place
  4. batteries - which store excess electricity
  5. a grid box
  6. and system balancing (wires, nuts etc.).



How can we use Solar Energy?

All solar power systems operate on the same fundamental principles. Solar panels use the photovoltaic (PV) effect to convert solar energy or sunlight into direct current (DC) power. The DC electricity may either be stored in a battery or transformed into AC power by a solar converter, which can then be utilised to power household appliances. Excess solar energy can be delivered into the power grid for credits or stored in a number of different battery storage devices, depending on the kind of installation. A solar system can be 1 kWh, 2 kWh, 3kW, 5kW, 7.5 kW, or 10kW in size. On average, a house with monthly electricity consumption of 1000 kWh requires 26 – 30 solar panels (Each solar panel is 320 watt).

Solar system price- Installing a solar system for a home is  Rs. 25,000 if you already have a single inverter battery and Rs. 50,000 if you already have a double inverter battery.

The three main types of solar systems are-

  1. On-grid solar system - also known as a grid-tie or grid-feed solar system
  2. Off-grid solar system - also known as a stand-alone power system (SAPS)
  3. Hybrid solar system - grid-connected solar system with battery storage



Uses of Solar energy



  1. Solar heating can be used for swimming pools.
  2. Solar water heater
  3. Heating of an entire house with the help of solar energy
  4. Charging of batteries with solar power.
  5. Power the entire house with solar energy
  6. Solar energy can be used for cooking
  7. Outdoor lightning
  8. Solar power pumps



What is an on grid and off grid solar system?

On-grid and off-grid are the two most common types of solar systems. On-grid means that all the components of your system must be connected to the grid. Off-grid means that you have your own power generation system, but it may or may not be connected to the grid. Each has its benefits, but if you want to get into solar it's important that you understand what each system entails so that you can choose which one is right for your home or business.

On grid solar system- An on-grid or grid-tied solar system is one that operates in tandem with the power grid. This implies that any surplus or deficit in electricity may be supplied back into the grid via net metering. Many household users are choosing an On-grid solar system since they may receive credit for the extra power produced by their system and save money on their electricity bills. You will always have access to power, whether from the solar system or the grid. They are not powered by batteries.



Off grid solar system - Off-grid solar systems operate independently of the grid but include batteries that can store the solar power generated and supply electricity after the power goes off or during the night.

Off-grid solar systems must be properly built in order to generate enough electricity throughout the year and have enough battery capacity to satisfy the needs of the residents, even in the dead of winter when there is often significantly less sunshine.

What is the difference between an off-grid and on-grid solar system?

The main differences between off-grid and on-grid solar systems are-

  1. An Off-Grid solar system will continue to operate even if power is lost, however, an On-Grid system would not.
  2. A grid-connected solar system is less costly than an off-grid solar system.
  3. An off-grid solar energy system is not tied to the utility grid, but an on-grid (also known as grid-tied) solar energy system is.
  4. If your PV system is not connected to the grid, you will not receive an electric bill. Even though your solar system generates 100 per cent of your power, if you choose a grid-tied system, you may still notice a few minor costs on your electricity statement.

Here are a few fundamental things to consider when purchasing a solar inverter for your house or business:

  1. Types
  2. Features
  3. Efficiency
  4. Warranties
  5. Pricing



LENTO 5KVA Off-Grid Inverter-

Lento pioneered pure Sine wave technology in its inverters, UPS and power supplies. The Sine wave inverters output stable frequency and voltage, mimicking mains power supply, making it perfectly suitable to power expensive equipments, especially inductive loads that do not work well on square waves. Most appliances like CFL, fans, motor based equipments like air conditioners and pump sets are designed to work on 50 Hz sine wave. Running such equipments on unregulated quasi sine wave-square wave based inverters poses a risk as regards performance and durability.

\Lento DSP sine wave Static UPS and inverters are designed to provide stable 50 Hz sine wave irrespective of load and battery voltage, making them the most suitable for inductive, capacitive and non-resistive loads. Importantly, our inverters and UPS are designed to deliver instantaneous high current during start up, especially in case of air conditioners and refrigerators, with safety cut out when battery voltage goes lower than a specified point to avoid brownouts and burning of motors.



1. Lento Eco-Smart 6000 5kva 48V Solar Hybrid Inverter-

Product Specification

Brand

Lento

Model

Eco-Smart 6000

Capacity

5000VA

Grid Type

Off Grid

Input Voltage

48V

Max Supported Panel Power

5000 watts

Country of Origin

Made in India

Minimum Order Quantity

1



Product Description

Pure sine wave are much perfect for hybrid solar system. it has inbuilt sine wave inverter and PWM solar charge /SMPS charger in single unit. It is specifically designed to keep battery healthy for longer time period.



2. Lento 5KVA 96V Hybrid Solar Inverter-



Product Specification

Output Power(Kw)

5KVA

Output Voltage

220 V

Input DC Voltage

120V to 270V

Output Frequency

50 Hz

Efficiency

75 to 90 %

Weight

54 Kg

Dimension (L*B*H in Centimetre)

35 x 30 x 66 cm

AC Over Voltage / Current Limitation Protection

Yes

DC Reverse Polarity Protection

Yes

AC Short Circuit Protection

Yes



Product Description



Our Solar Inverters (pure sine wave) are very perfect for hybrid solar system. It has inbuilt sine wave inverter and PWM solar charger/SMPS charger in a single unit. It is specially designed to keep battery healthy for longer time period.



For the minimization of electrical power, it uses optimum utilization of solar power with the technology of interactive solar charging with grid. It has very stable output voltage of 220 V (+/- 5V %), even in wide input voltage ranging from 130 V to 270 V in inverter mode and from 180V to 260V in UPS mode.



Other features are it is facilitated with high surge power of starting critical load, simple and easy handling with high reliability. Another significant point is its very low ‘no load current’.



(LENTO) Modified Sine Wave Solar Inverters perform adequate for general home lighting and computer use. These inverters have wide input range of 120V to 270V or compatible of 180V to 260V. This can be selected by soft on/off switch at front panel. The charging current and algorithm is designed for prolonged battery life.



Salient Features:



  • DSP based Design with absolute and stable Sine Wave output voltage and frequency.
  • LCD display for UPS monitoring.
  • Over Temperature protection.
  • No noise and no smoke.
  • Light weight and very easy to carry.
  • Compact and efficient.
  • Protection against lightning.
  • High efficiency PWM based solar charge controllers.
  • Data logger.



What Are the Benefits of an Off-Grid PV System?

As previously stated, the primary feature of an off-grid solar system is its lack of access to the utility grid. This is also one of the benefits that this type of solar system provides. This is advantageous because, in areas where there is no access to the utility grid, off-grid solar systems can be less expensive than extending power lines.

Furthermore, living off the grid makes a solar system self-sufficient, which can be advantageous for many people. This sense of self-sufficiency is more valuable to these people than saving money. Self-sufficiency in energy is also a form of security.

Power outages on the utility grid will not affect off-grid solar systems, ensuring that buildings with off-grid solar systems have consistent power.



Why buy Solar Inverters from us?

Lento is the best solar hybrid inverter manufacturer. It is driven by research and development but with a difference. The focus at Lento is on harnessing the power of R&D to develop innovative, future-proof products that are aligned with markets and requirements of end users. This inverter making company has R&D that powers the manufacturing of advance technology-based products that include Inverters, Online UPS & static UPS, Automatic Lift Backup System (ALBS), Solar Power Equipment, LED lights, and BLDC motor application-based products. It brings you: commercial series, utility series and hybrid series. The product redefines your relationship with energy, saves money and reduces emission of carbon.



Lento offers thousands of products, including solar inverters, batteries, and solar panels, among others.



If you want to buy wholesale solar inverters at a low cost, browse the online marketplace for a wide selection of high-quality inverters.

FAQ-

What is the difference between on-grid off-grid and hybrid solar system?

In terms of energy storage, on-grid systems do not need storage; off-grid systems use very large storage, and hybrid systems use a storage size depending on load requirements. In an on-grid solar system, when there's no power from the national grid, there is a blackout (if there's no storage).



Does Saudi Arabia use solar panels?

A range of renewables is now part of the Saudi energy strategy, with solar looking particularly promising as it now accounts for 82.6% of the country's total renewable capacity.



What is a hybrid off-grid solar system?

Hybrid solar systems combine the best of grid-tied and off-grid solar systems; the solar panels are attached to batteries and the utility grid. You'll commonly see hybrid solar systems referred to as “solar-plus-storage” systems.



What is off-grid and on-grid connected system in wind energy?

Off-grid systems are completely independent of the grid and rely on renewable energy sources and energy storage. On-grid systems are connected to the grid and rely solely on renewable energy sources.



Which is better hybrid or off-grid inverter?

In terms of compatibility, not all hybrid inverters work with every type of battery. The attractive feature of off-grid inverters is they are cheaper compared to hybrid inverters. The primary concern of off-grid inverters is a power outage. It cannot work in conjunction with the utility grid.



What is the disadvantage of a hybrid solar system?

One of the main drawbacks of hybrid systems is their higher upfront cost compared to traditional solar installations. The addition of batteries and other components increases the initial investment, although this cost is gradually decreasing with advancements in technology.



What is the drawback of an off-grid solar system?

Another disadvantage of an off-grid solar system is that you don't have enough amount of electricity storage because your batteries can store a limited amount of electricity and you can't use it freely. You should have to be more careful in using electricity as compared to a grid system.
