What Is The Difference Between Mppt And Pwm Charge Controller

What Is The Difference Between Mppt And Pwm Charge Controller

When is a solar charge controller required? A solar charge controller, as the name implies, modulates the current amperage (and thus the voltage) moving from the solar panels to the batteries. It is a regulator that prevents overcharging of the batteries. Overcharging can result in overheating and explosion, posing a safety hazard. Heating also reduces the system's efficiency. Furthermore, when the batteries are discharging to supply power to your home, the controller regulates the rate of discharge to meet the demand. As a result, a solar charge controller is an essential component of the installation.

Do you require a solar charge controller?

Here's what you should know if you're wondering whether you need a solar charge controller or not. A solar charge controller is required for every solar panel installation. The overall system, however, determines whether a solar inverter with an integrated charge controller or an additional charge controller is required.

Solar charge controllers are classified as follows:

PWM (Pulse Width Modulation) -

Because this type of pulse width modulation is less expensive, it is commonly used for off-grid solar solutions in homes and commercial applications. A 12V solar panel is capable of charging a 12V battery. A 24V battery bank requires two 12V panels wired in series, or a single 24V panel, and so on.

PWM necessitates matching the voltage of the panel array to the voltage of the battery bank. Otherwise, the charging power will be lost. And the greater the mismatch, the greater the power loss. As a result, PWM is less expensive but has less flexibility and efficiency.

Advantages:PWM controllers are time-tested because they have been around for a long time. It's also less expensive.

Disadvantages: They don't give you much room for system expansion. Furthermore, the battery bank's voltage must be matched to the nominal voltage of the solar array.

The most recent technology for charge controllers that is increasingly being used is:

MPPT stands for Maximum Power Point Tracking -

MPPT controllers are more expensive, but they provide greater flexibility in terms of panel count. To match the battery bank, the voltage from the PV module will be reduced, with a corresponding increase in current amperage. A higher amperage will result in a faster recharge. These solar charge controllers will adjust automatically based on the P = V x A equation. As a result, unlike PWM, you will have more power to charge the battery and no loss.

The following are the advantages of MPPT:

1. The MPPT controller enables a higher voltage panel array than the battery bank. This is important in areas with low irradiation or during the winter when there are fewer hours of sunlight.
2. When compared to PWM, they provide a 30% increase in charging efficiency.
3. Increased system growth flexibility. This is applicable to commercial establishments.
4. They typically have longer warranty periods than PWMs.

So, what Is the Difference Between an MPPT Solar Charge Controller and a PWM Solar Charge Controller?

The MPPT solar charge controller is one of two types of charge controllers available on the market. A pulse width modulation (PWM) charge controller is another option. A PWM works by using a transistor that rapidly opens and closes to modulate the current of the panels.

The main distinction between the two types of solar charge controllers is that the MPPT controller modulates both the voltage and the current, whereas the PWM controller only affects the current. Because it reduces amperage without affecting voltage, it has no effect on overall wattage other than to reduce from the highest output rating for your panels.

In other words, whereas an MPPT controller controls optimal power output, a PWM controller only allows you to reduce the current flowing into the battery. Every solar panel has a standard rating for the wattage it can produce. A PWM controller reduces the performance of each panel without the adjustments that an MPPT controller can make to rebalance and compensate.

No solar system is completely efficient. Depending on how the panel is configured and aligned, it only converts 15-20% of the sunlight it absorbs into electricity. A PWM controller loses more energy as heat than an MPPT controller and does not help you get the most out of your system because it only affects half of the power equation.

The crux of the difference is: With a PWM controller, the current is drawn out of the panel at just above the battery voltage, whereas. With an MPPT solar charge controller the current is drawn out of the panel at the panel “maximum power voltage” (think of an MPPT controller as being a “smart DC-DC converter”)

Is it worthwhile to invest in MPPT solar charge controllers?

When determining whether a major purchase is worthwhile, consider your usage, your needs, and the magnitude of the differences between options for that purchase. For an MPPT controller, the question is whether the benefits, such as increased energy production, outweigh the additional cost over time.

If you have a simple system, such as a River Pro solar generator for camping, the answer may be no. Similarly, if you rarely have rainy or cloudy days, the fine-tuned calibration and frequent adjustments provided by an MPPT controller may not provide a significant enough advantage to justify the extra cost. Because the additional power you gain may be minimal, it may take much longer to see the cost savings you would expect from using an MPPT charge controller.

In the absence of those conditions, an MPPT solar charge controller provides significant benefits that pay off over time. It enables you to make the most of your system, avoid energy waste, and maintain peak delivery throughout the year.

The more efficiently you generate and store energy, the faster your initial financial investment will pay off. An MPPT solar charge controller accelerates your path to a positive ROI.

Conclusion

Your solar energy system is a significant investment for your home, and an MPPT controller can help you maximize your return.

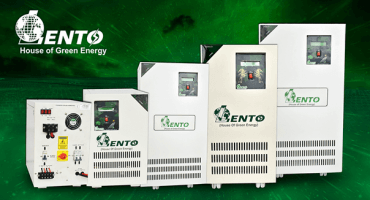

Shop Lento now for solar power systems with MPPT controllers. Our Power Kits include high-quality components to ensure that your solar power system meets your needs.

Faq-

How does maximum power point tracking work?

MPPT checks output of PV module, compares it to battery voltage then fixes what is the best power that PV module can produce to charge the battery and converts it to the best voltage to get maximum current into battery. It can also supply power to a DC load, which is connected directly to the battery.

What are the disadvantages of a solar charge controller?

Cons of PWM Solar Charge Controller :

• Lower efficiency:PWM controllers are not as effective at converting solar power into usable electricity compared to MPPT controllers. ...
• Voltage limitations:PWM controllers are not ideal for applications with higher voltage panels or systems with multiple panels connected in series.

What are the advantages of using a MPPT solar charge controller?

The benefits of MPPT are as follows:

The MPPT controller allows a panel array to be of higher voltage than the battery bank. This is relevant for areas with low irradiation or during winter with fewer hours of sunlight. They provide an increase in charging efficiency up to 30% compared to PWM.

What is the best type of solar charge controller?

The MPPT Controller is Best:

where the additional 20%* or more energy harvesting is worthwhile. When the solar array voltage is substantially higher than the battery voltage e.g. using house panels, for charging 12V batteries.

Which is better, MPPT or PWM?

MPPT controllers are typically more expensive than PWM's but are more efficient under certain conditions, so they can produce more power with the same number of solar modules than a PWM controller.

What is the efficiency of maximum power point tracker?

(Remember, it is Amps into the battery that counts). Most modern MPPT's are around 93-97% efficient in the conversion. You typically get a 20 to 45% power gain in winter and 10-15% in summer. Actual gain can vary widely depending weather, temperature, battery state of charge, and other factors.

What is the maximum input voltage for a solar charge controller?

The input voltage and current ratings are typically up to 60V and up to 60 A, accordingly. With MPPT controllers, however, the input voltage range can boost up to 150V, which gives you more freedom to connect many solar panels in series, especially in larger solar panels systems.

How to know if a solar battery is fully charged?

The most straightforward way to determine whether your solar battery is fully charged is by checking its voltage. If you have a 12-volt battery and it's fully charged, it should measure around 12.7 volts. Similarly, a 24-volt battery that's fully charged should measure around 25.4 volts.

What is the application of MPPT?

MPPT devices are typically integrated into an electric power converter system that provides voltage or current conversion, filtering, and regulation for driving various loads, including power grids, batteries, or motors. Solar inverters convert DC power to AC power and may incorporate MPPT.

What is the direction of a solar panel?

south

Solar panels, however, need to face solar or geographic south, which is the direction towards the South Pole.
