What Does 100ah Mean On A Battery

What Does 100ah Mean On A Battery

A 100Ah (ampere-hour) rating on a battery indicates its capacity to deliver 100 amperes of current for one hour, or an equivalent amount of energy over a longer duration at a lower current. For example, the battery can provide 10 amps for 10 hours or 1 amp for 100 hours, depending on the load. This rating helps measure the total energy the battery can store and deliver, usually expressed in watt-hours (Wh) when multiplied by the battery voltage. For a 12V battery, a 100Ah capacity means it can store 1200Wh of energy, making it ideal for various applications like solar systems, RVs, or backup power.

Product Specification

Product Description

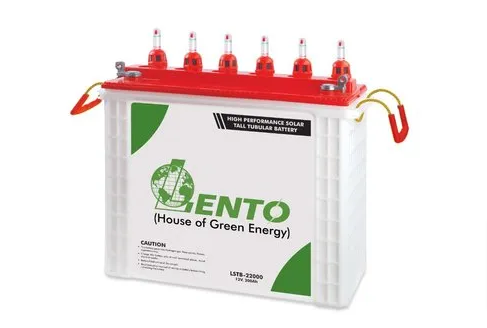

Lento industries private limited is the best manufacturer, exporter and supplier of Uttarakhand, India, providing Lead Acid Tubular Batteries and Trolleys that are featured with tubular gauntlets of high brushing strength with high performance for positive plates. These products are specifically suitable for powering up UPS and inverters. We use premium technology and high grade materials in these lead acid tubular batteries to deliver maximum power for extended durations and have an appreciably longer life span. Along with that, these Lead Acid Tubular Batteries and Trolleys for batteries are environment-friendly, highly reliable in performance and is low in cost.

Features

• • Good recovery from deep discharging
  • Low maintenance battery
  • Specially designed vent plugs to trap electrolyte loss
  • Long shelf life when left unattended for extended periods

A 12V 100Ah battery is a reliable and efficient power source for solar systems. It can provide sustained power for extended periods, making it ideal for off-grid and remote applications. In this content, we will discuss the features, specifications, and benefits of a 12V 100Ah battery for solar.

Features:

A 12V 100Ah battery for solar typically has the following features:

1. Deep cycle design: The deep cycle design of the battery means that it can be discharged to a much greater extent than a regular battery without causing damage. This makes it ideal for solar applications where sustained power is required.
2. Sealed construction: The battery is usually sealed to prevent leaks and spills, making it safe to use in a variety of environments.
3. Low self-discharge rate: The battery has a low self-discharge rate, meaning that it can be stored for longer periods without losing its charge. This is particularly important in off-grid and remote applications where the battery may not be used for extended periods.
4. Maintenance-free: Many 12V 100Ah batteries for solar are maintenance-free, which saves time and effort in keeping the battery in good condition.

Specifications:

A 12V 100Ah battery for solar typically has the following specifications:

1. Voltage: 12 volts DC
2. Capacity: 100 amp-hours
3. Dimensions: The battery usually measures around 330mm x 173mm x 215mm.
4. Weight: The battery typically weighs around 30kg.
5. Terminal type: The battery may have different types of terminals, including screw terminals, bolt terminals, or flag terminals.

Benefits:

A 12V 100Ah battery for solar offers several benefits, including:

1. Reliable power supply: The battery provides a reliable source of power for solar systems, ensuring that the system can operate even during extended periods of low sunlight.
2. Long life: The deep cycle design of the battery means that it can provide power for many years, making it a cost-effective solution for off-grid and remote applications.
3. Low maintenance: Many 12V 100Ah batteries for solar are maintenance-free, which saves time and effort in keeping the battery in good condition.
4. Versatility: The battery can be used for a wide range of solar applications, from powering small systems to providing backup power for larger systems.

Conclusion:

A 12V 100Ah battery is a reliable and efficient power source for solar systems. With its deep cycle design, sealed construction, low self-discharge rate, and maintenance-free operation, this battery is a popular choice for off-grid and remote solar applications. When choosing a 12V 100Ah battery for solar, it is important to consider the features, specifications, and benefits to ensure that it meets your specific needs.

Faq About 12V 100Ah Battery for Solar

How many solar panels do I need to charge a 12V 100Ah battery?

Charging your battery at 12 volts and 20 amps will take five hours to charge a 100 amp hour battery. By multiplying 20 amps by 12 volts, 240 watts is how big of a panel you would need, so we'd recommend using a 300w solar panel or 3 100 watt solar panels.

How long does a 12V 100Ah solar battery last?

You can imagine that one of the most frequent questions regarding the 100 amp hours batteries is this one: “How long will a 100Ah battery last?” A 100Ah battery can last anywhere from 120 hours (running a 10W appliance) to 36 minutes (running a 2,000W appliance).

How long will a 100Ah battery run a fridge?

about 30-50 hours

If you're using a 12V 100Ah lead acid battery, you can expect the fridge to run for about 30-50 hours because lead acid batteries can only be discharged to 50%.

What size inverter do I need for a 12V 100Ah battery?

We recommend having a minimum of 100Ah battery for each 1000watts inverter capacity. For example, a 3000-watt inverter would need at least three 100Ah Battle Born Batteries. Just as important as the capacity is the battery type.

How strong is 100Ah battery?

Ah rating of a battery indicates the battery capacity or the amount of ampere hours it can handle. A 100Ah battery means that the battery can supply a load of 100 amperes in one hour, or 50 amperes for two hours or 10 amperes for 10 hours

How long will a TV run on a 100Ah battery?

However, this is usually not the case, a TV may be used for 5 hours, a laptop may be charged for an hour while the fridge compressor may only run for 12 out of every 24 hours of each day.
