Introduction different types of inverters

Introduction different types of inverters

Inverters are classified based on their output waveforms, with the three most common types being square waves, pure sine waves, and modified sine waves.

The square wave is simpler and less expensive, but it has lower power quality than the other two. The modified square wave has a higher power quality (THD 45%) and is suitable for most electronic devices. These have rectangular pulses with dead spots between the positive and negative halves of the cycle (THD of about 24%).

pure sine wave inverters have the best waveform, with a THD of about 3%. However, it is the most expensive and is used in medical equipment, stereos, laser printers, and other applications that require sinusoidal waveforms. These are also used in grid-connected inverters and equipment.

What are the uses of an inverter?

Inverters are used in a wide range of applications, including small car adapters, household or office applications, and large grid systems.

• Supplies of uninterruptible power
• As independent inverters
• In solar energy systems
• As a component of a switched mode power supply

Looking for the best inverter to buy?

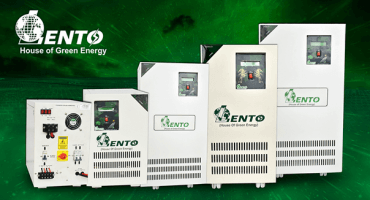

The best inverter is provided by Lento. Inverters, UPS, and power supplies from Lento were the first to use pure Sine wave technology. Our sine wave inverters produce stable frequency and voltage while simulating mains power, making them ideal for powering expensive equipment, particularly inductive loads that do not work well on square waves.

Frequently Asked Questions-

How does an inverter work in simple terms?

In one simple inverter circuit, DC power is connected to a transformer through the center tap of the primary winding. A relay switch is rapidly switched back and forth to allow current to flow back to the DC source following two alternate paths through one end of the primary winding and then the other.

How does an inverter work at home?

Inverter and battery function together. House appliances operate on alternating current, whereas battery stores direct current. An inverter converts the direct current (DC) stored by the battery to an alternative current (AC) which is then supplied to the appliances immediately during a power outage.

How does an inverter work when there is no electricity?

When there is a power outage, an inverter switches from mains mode to backup mode. The inverter uses the charge stored in the batteries to power various appliances in this mode. While the inverter switches modes, all running appliances come to a halt for a few seconds. After a few seconds, they restart in backup mode.

What are the different types of inverters?

Inverter types and classification

• Stand-alone inverters (supplies stable voltage and frequency to load)
• Grid-connected inverters (the most commonly used option)
• Bimodal inverters (usually more expensive and are used less often)

What is the best type of inverter?

If you're installing a system that's 20 kW or more, string inverters are probably your best bet, as they're the most scalable option. If you have a typical-sized home and have some shading on your roof, microinverters or solar optimizers may make the most sense.

What is a 3 inverter?

A 3-phase inverter is a device that converts direct current (DC) electricity into alternating current (AC) electricity with a 3-phase voltage waveform. 3-phase inverters are commonly used in applications such as renewable energy systems, electric vehicles, and industrial motors.

How many types of PV inverters are there?

To recap, there are three kinds of inverters: string inverters, microinverters, and power optimizers. They all transform the power your solar panels generate from direct current (DC) to alternating current (AC).

What type of inverter is used at home?

Inverters come in different types: pure sine wave, modified sine wave, and square wave. Pure sine wave inverter is the best for homes because it offers the best DC to AC conversion making the power supply as smooth as possible so that your appliances that are easily affected by fluctuations do not get damaged.
