How Does An Inverter Work
If you're looking for the best inverter and want to learn everything you can about it, this is the article for you. Continue reading to learn how an inverter works and why you should buy one.
What is an inverter?
An inverter converts DC voltage to alternating current voltage. In most cases, the input DC voltage is lower, while the output AC voltage is equal to the grid supply voltage, which can be 120 or 240 volts depending on the country.
The inverter can be designed as a standalone piece of equipment for applications such as solar power or as a backup power supply using batteries that are charged separately.
The other configuration is when it is part of a larger circuit, such as a power supply unit, also known as a UPS. In this case, the rectified mains AC in the PSU powers the inverter, while the rectified AC in the UPS powers it when there is power and the batteries power it when there is no power.
Inverters are classified according to the shape of the switching waveform. These have various circuit configurations, efficiencies, benefits, and drawbacks.
An inverter generates alternating current voltage from direct current power sources and is useful for powering electronics and electrical equipment rated at alternating current mains voltage. Furthermore, they are widely used in the inverting stages of switched mode power supplies. The circuits are classified based on their switching technology and switch type, as well as their waveform, frequency, and output waveform.
Why is an inverter necessary?
It is the job of a battery, not an inverter, to store electricity. An inverter's primary function is to convert DC power from power stations into AC power and store it in batteries. Why can't you store this power in the available alternating current form? The answer is that batteries are only charged by DC power and not by AC power. The DC power stored in the batteries must now be converted to AC power in order to power various appliances. Inverters are responsible for this task.
As a result, the inverter converts stored energy into alternating current when it is required to power the house. As a result, in the event of a power outage, this device can be used as a backup.
How does an inverter work?
The role of the inverter device is to control the voltage and frequency of the power supply as well as to change the rotation speed of motors used in home appliances and industrial machinery.
The first thing to remember when learning about the internal structure of an inverter device is that the converter circuit converts alternating current (AC) from the power source into direct current (DC), and the inverter circuit converts the converted direct current (DC) back into alternating current (AC) (AC). They function as a unit.
To begin, the converter circuit converts alternating current to direct current on a continuous basis. This is known as rectification. Because alternating current is a sine wave, the direction and magnitude of the wave change on a regular basis. As a result, a diode, a semiconductor device, is used to convert electricity in the forward direction into direct current but not in the reverse direction.
Only the forward direction of direct current passes electricity through the diode, resulting in a positive peak. The other half of the cycle, however, will be squandered because it does not pass the peak in the negative direction. The diode's structure is shaped like a bridge to allow it to pass the negative peak in a forward direction. Because it transforms both the forward and negative wave peaks, this is known as full-wave rectification.
Full-wave rectification, on the other hand, cannot produce a smooth waveform because traces of alternating current and rippled voltage fluctuations remain. To clean these up, the capacitor is repeatedly charged and discharged, gently smoothing and changing the waveform to something close to direct current.
After that, the inverter circuit generates alternating current with varying voltage and frequency. The DC/AC conversion mechanism changes the ON/OFF intervals of power transistors such as "IGBT (Insulated Gate Bipolar Transistor)" to generate pulse waves of varying widths. Then it combines them to form a pseudo sine wave. This is known as "Pulse Width Modulation (PWM)."
The pulse width is automatically controlled by the computer. Some of the dedicated one-chip computers that control the motor include a pre-installed PWM function. This allows you to generate pseudo sine waves of varying frequencies and control the rotation speed of the motor by simply specifying the desired parameters.
When there is no power outage, what does an inverter do?
Most people believe that an inverter is only useful when there is a power outage. An inverter, on the other hand, is a device that operates continuously. How? There are no power outages, for example, and the mains power supply is operational. In this case, an inverter uses this power supply to charge its batteries, which can then be used in the event of a power outage. When the batteries are fully charged, the inverter no longer supplies power to the batteries and your appliances operate in bypass mode. When batteries are not in use, they slowly discharge. Again, the inverter switches to charge them back.
When there is a power outage, what does an inverter do?
When there is a power outage, an inverter switches from mains mode to backup mode. The inverter uses the charge stored in the batteries to power various appliances in this mode. While the inverter switches modes, all running appliances come to a halt for a few seconds. After a few seconds, they restart in backup mode. Now, the inverter only powers the appliances that are connected to the inverter supply, while the rest of the appliances wait for power from the mainline.
An Inverter Automation
While an inverter is in standby or running mode, a number of different circuits are responsible for sensing and handling various situations. These are known as automation sections, and they respond to conditions such as:
- Over charge
- Overload.
- Low Battery.
- It provides pure sine wave output for your sensitive appliances at homes and offices.
- Over heat
This section, depending on the situation, switches the battery into a suitable mode, either switch OFF mode or charging mode. This section includes LEDs and alarms that alert the operator to various conditions and situations. These conditions are displayed on LCD screens in advanced inverters.
What are the types of inverters?
Inverters are classified based on their output waveforms, with the three most common types being square waves, pure sine waves, and modified sine waves.
The square wave is simpler and less expensive, but it has lower power quality than the other two. The modified square wave has a higher power quality (THD 45%) and is suitable for most electronic devices. These have rectangular pulses with dead spots between the positive and negative halves of the cycle (THD of about 24%).
pure sine wave inverters have the best waveform, with a THD of about 3%. However, it is the most expensive and is used in medical equipment, stereos, laser printers, and other applications that require sinusoidal waveforms. These are also used in grid-connected inverters and equipment.
What are the uses of an inverter?
Inverters are used in a wide range of applications, including small car adapters, household or office applications, and large grid systems.
- Supplies of uninterruptible power
- As independent inverters
- In solar energy systems
- As a component of a switched mode power supply
Looking for the best inverter to buy?

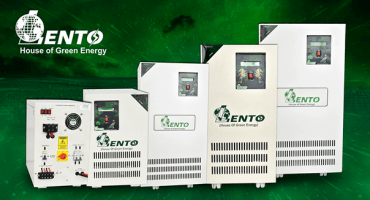

The best inverter is provided by Lento. Inverters, UPS, and power supplies from Lento were the first to use pure Sine wave technology. Our sine wave inverters produce stable frequency and voltage while simulating mains power, making them ideal for powering expensive equipment, particularly inductive loads that do not work well on square waves.
Frequently Asked Questions-
How does an inverter work in simple terms?
In one simple inverter circuit, DC power is connected to a transformer through the center tap of the primary winding. A relay switch is rapidly switched back and forth to allow current to flow back to the DC source following two alternate paths through one end of the primary winding and then the other.
How does an inverter work at home?
Inverter and battery function together. House appliances operate on alternating current, whereas battery stores direct current. An inverter converts the direct current (DC) stored by the battery to an alternative current (AC) which is then supplied to the appliances immediately during a power outage.
How does an inverter work when there is no electricity?
When there is a power outage, an inverter switches from mains mode to backup mode. The inverter uses the charge stored in the batteries to power various appliances in this mode. While the inverter switches modes, all running appliances come to a halt for a few seconds. After a few seconds, they restart in backup mode.
Do inverters convert AC to DC?
The first thing to keep in mind when it comes to enriching your understanding of the internal structure of an inverter device, is that the converter circuit converts alternating current (AC) coming from the power source into direct current (DC), and the inverter circuit changes the converted direct current (DC) back ..
What is the principle of inverter?
The inverter first converts the input AC power to DC power and again creates AC power from the converted DC power using PWM control. The inverter outputs a pulsed voltage, and the pulses are smoothed by the motor coil so that a sine wave current flows to the motor to control the speed and torque of the motor.
How many hours can an inverter last?
around 5 to 10 hours
1 In general, you can expect your inverter battery to last anywhere around 5 to 10 hours when it is fully charged. 2 If your 150 Ah battery is fully charged, it should last for around 3 hours on a 400 watt bulb load.
Can I use inverter without battery?
Without a battery, the inverter will only be able to use solar power when the sun is shining, and any excess energy will be wasted if not used immediately. Without the grid, the inverter can't sell excess power back or draw from it during periods of high demand.
