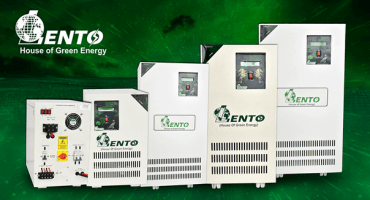

3KVA 96 VDC Online UPS Inverter in Nigeria

3KVA 96 VDC Online UPS Inverter in Nigeria

Lento DSP sine wave online UPS feature a wealth of advanced features. Designed for use with expensive critical electronic instrumentation, these UPS systems have a host of safety controls to ensure your devices are always protected. Lento DSP online UPS performs very well in case of mains failure, sensing of voltage fluctuations and automatic switchover, lightning guard, electrostatic protection, overvoltage and overload protection, short circuit protection and low battery protection. Lento DSP UPS are configured to be always active when power fails. At the same time the batteries are kept constantly charged through a monitoring circuit to ensure their longevity. DSP sine wave online UPS are preferred especially when they are Lento with guaranteed frequency and voltage control along with inbuilt protection features.

Salient Features of Online UPS 1-1 Output Series

• DSP Based double conversion topology with enhanced control over the voltage and frequency.
• In-Built requisite safety & protections like Short circuit, over temp, Battery Low/High, etc. With comprehensive display.
• Wide Input Voltage and frequency range.
• Pure Sine Wave Output.
• Generator Compatibility.
• (Remote) Monitoring and Auto – Shutdown software.
• Extremely Low Total Harmonics distortion (<3%).
• Web, SNMP & GSM based monitoring (optional)
• Cold Start.
• LCD Display.

Available Variants:

• 1 KVA / 36 VDC
• 2 KVA / 72 VDC
• 3 KVA / 96 VDC
• 5 KVA / 120 VDC & 180 VDC
• 7.5 KVA / 180 VDC
• 10 KVA / 180 VDC

Lento Single 3 KVA 96 VDC High Frequency Online UPS, For Industrial, Input Voltage: 36V

Product Specification

Product Description

3kva 96v High Frequency On-line Ups

Lento are having vast experience of manufacturing and supplying of quality products in domestic as well as in international market.

We are one of the biggest OEM manufacturers in Nigeria, having world class manufacturing setups and In-house R&D recognized by government of Nigeria, Which makes Lento one of the biggest manufacturer and exporter of Sine wave Inverters, UPS as well as Solar Photo Voltaic systems in Nigeria.

Lento has also sent step towards designing and developing products based on solar energy. Lento is all set to launch its brand-new ranges of solar energy based products such as solar charge controller, solar power conditioning unit, solar grid interactive and solar motor pump drive.

What is UPS (Uninterruptible Power Supply)?

UPS is an abbreviation for Uninterruptible Power Supply, and its name comes from the fact that it provides a continuous supply of power without interruption. It draws current from the mains in normal operation and from its backup source during a power outage.

As a backup source, a UPS system uses DC power stored in a battery. A Rectifier and charge controller circuit in the UPS charges the battery from the AC mains. At the same time, it powers the output AC load. In the event of a power outage, the UPS uses the charged DC power in the battery to convert it to AC via an inverter and supply it to the AC load.

The switch between sources (AC mains and battery in case of power outage) is now instantaneous. It does, however, take time. Some sensitive electronic equipment may be affected by this time delay during switching, while other devices may tolerate it within a certain range. This is where Online UPS and Offline UPS enter the picture.

What is Online UPS?

The Online UPS is a type of UPS that normally supplies power to the AC load via the Rectifier and Inverter Combo and uses an inverter to supply power during a power outage. As a result, the output power supply is always on and no switching is required. As a result, there is no time lag when switching between its sources. Even if the power goes out for a nanosecond, there is no interruption.

During normal operation, a rectifier converts the AC supply from the mains into DC and a charge controller circuit charges the battery. At the same time, the DC power from the charged battery is being converted into AC and supplied to the output AC load via an inverter.

In the event of a power outage, the UPS will stop drawing current from the alternating current mains and will stop charging the battery. However, the AC load will continue to draw current from the battery via the Inverter.

As a result, when switching its power source, Online UPS has no time delay. It is also known as an Online UPS because it remains operational even when not in use.

When Should You Use Online UPS?

• When to use continuous power supply without switching operations for sensitive and important devices and equipment.
• When the main power supply fluctuates frequently or when the daily scheduled load shading and power outage occurs.
• When there are no concerns about the cost of operation, installation, and maintenance because the online UPS system is more expensive than the offline UPS system due to the additional parts in online uninterruptible power supply.
• When you require the simultaneous operation of multiple connected devices for an extended period of time.

What is the difference between online and offline UPS?

The two most important types of UPS are online UPS and offline UPS. Both provide power to the device in the event of a power outage. The similarities, however, end here. The primary distinction between Online UPS and Offline UPS is that the Online UPS provides power via a rectifier and inverter combination. It supplies power to both the load and the battery at the same time, allowing the battery to be charged and ready to go in the event of a power outage.

An Offline UPS, on the other hand, supplies AC power directly to the load by turning on the transfer switch. In the event of a power outage, the offline UPS draws power from the battery backup. Another significant distinction between Online UPS and Offline UPS is the requirement for a large heat sink.

The rectifier in the Online UPS supplies power directly to the inverter as well as the battery. As a result, heat dissipation will be significant. As a result, an Online UPS requires a larger heat sink than an Offline UPS.

Why buy Solar hybrid Inverters from us?

Lento is the best solar hybrid inverter manufacturer. It is driven by research and development but with a difference. The focus at Lento is on harnessing the power of R&D to develop innovative, future-proof products that are aligned with markets and requirements of end users. This inverter making company has R&D that powers the manufacturing of advance technology-based products that include Inverters, Online UPS & static UPS, Automatic Lift Backup System (ALBS), Solar Power Equipment, LED lights, and BLDC motor application-based products. It brings you: commercial series, utility series and hybrid series. The product redefines your relationship with energy, saves money and reduces emission of carbon.

Lento offers thousands of products, including solar inverters, batteries, and solar panels, among others.

If you want to buy wholesale solar inverters at a low cost, browse the online marketplace for a wide selection of high-quality inverters.

Frequently Asked Questions

How many batteries required for 3kVA online UPS?

6 Nos batteries

There are 12V 9AH 6 Nos batteries are inbuilt in UPS.

What is the difference between online inverter and UPS?

UPS has a rectifier for providing the backup power to the system whereas the inverter converts DC into AC. The main function of the UPS is to store the electric supply whereas the inverter converts the AC power into DC power.

Can a UPS be Used as an Inverter and Vice Versa?

A UPS can be used as an inverter while an inverter cannot be used as a UPS. To use a UPS as inverter, simply don't connect the input supply voltage to the UPS.

How long will a 3kVA UPS last?

A 3kVA uninterruptible power supply will have a built-in battery pack and the amount of runtime the UPS can provide when there is a mains power outage is dependent on the load connected. At 80% load a typical 3kVA/3kW UPS can provide 5-10 minutes of battery runtime.

How many batteries do I need for a 3 kVA inverter?

4 batteries are required. Q. How many batteries do I need for a 3 kVA inverter? Size of battery can be calculate based on the load Amp hour & required backup time during, however 5 - 10 Ah Battery is sufficient for 3kVA inverter.

Can I use UPS as a solar inverter?

With proper installation and configuration, you can effectively convert your UPS into a solar inverter to harness renewable energy from the sun.

Which is better, UPS or generator?

UPS systems produce zero carbon emissions making them more environmentally friendly. Generators most often run on diesel, natural gas or other liquid fuels. UPS systems are entirely noiseless, while generators can be very noisy. There are however soundproof versions and upgrades available.

What is the maximum load for 3kVA UPS?

A 3kVA UPS may be rated at unity power factor (1PF) which means that the UPS can supply 3kVA/3kW of load. If the power factor is less (typically 0.9 or 0.8) then the Watt load should not exceed 2700W (2.7kW) or 2400W (2.4kW) etc.

How long will a 3kVA UPS last?

A 3kVA uninterruptible power supply will have a built-in battery pack and the amount of runtime the UPS can provide when there is a mains power outage is dependent on the load connected. At 80% load a typical 3kVA/3kW UPS can provide 5-10 minutes of battery runtime.

How does a 3kVA inverter work?

Working of a 3 Kva Inverter

Since the direct current is too powerful to charge the appliances and might damage them, it is essential to convert it into an alternating current. The inverter makes this transition possible: it transforms DC energy into AC power to run household appliances.
